| Display Format | Picture | Model No. | Size (inch) |
Outline Dimension (mm) |
Viewing Area (mm) |
Pin | Perspective | Interface | IC Part No. | Brightness (cd/m2) |
Temperature (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 128×64 |  |

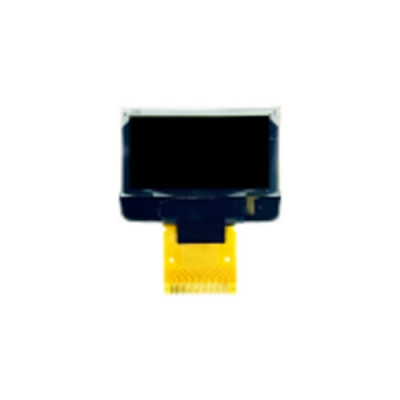

QT-2864HW09620P02 | 0.96 | 24.74×16.9×1.45 | 21.74×10.86 | 20 | 3/4wire serial interface, I 2 C | SSD1315 | 150 (Min) cd/m2 | -40~80℃ | |
| 128×64 |  |
QT-2864HW09615P02 | 0.96 | 24.74×16.9×1.45 | 21.74×10.86 | 15 | 4-wire SPI | SSD1315 | 150 (Min) cd/m2 | -40~80℃ | |
| 128×64 |  |

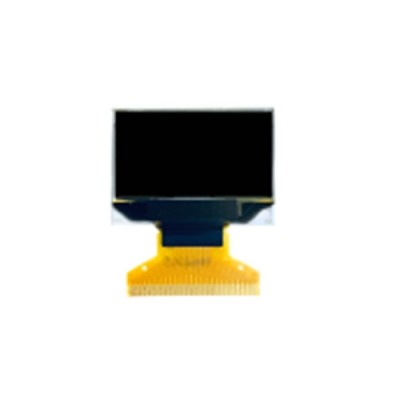

QT-2864TW09630P02-40 | 0.96 | 24.74×16.9×1.45 | 21.74×10.86 | 插接30 | 3/4wire serial interface, I 2 C | SSD1315 | 150 (Min) cd/m2 | -40~80℃ | |
| 64×128 |  |

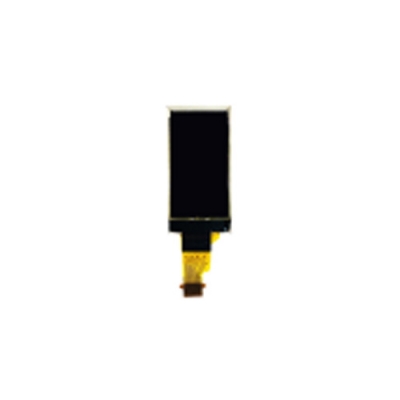

QT-6428TW09613P03 | 0.96 | 14×28×1.22 | 10.86×21.74 | 13 | I2C/ 4-wire SPI | SSD1312 | 160(Min) cd/m2 | -40~80℃ | |
| 64×128 |  |
QT-6428TW09613P02 | 0.96 | 14×28×1.22 | 10.86×21.74 | 13 | I2C/ 4-wire SPI | SH1107 | 160(Min) cd/m2 | -40~80℃ | |
| 64×128 |  |
QT-6428HW09613P01 | 0.96 | 14×28×1.22 | 10.86×21.74 | 13 | I2C/ 4-wire SPI | SH1107 | 160(Min) cd/m2 | -40~80℃ | |
| 96X96 |  |

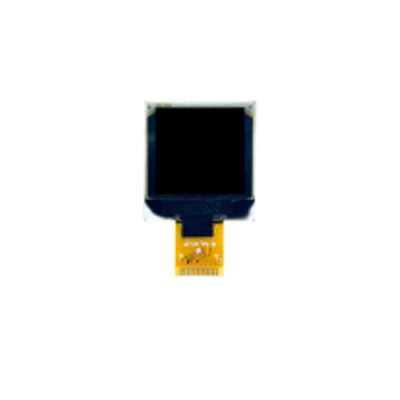

QT-9696HW09612P02 | 0.96 | 20.50 × 37.52 × 1.20 | 17.26 × 17.26 | 12 | 4-wire SPI | SSD1317 | 150 (Min) cd/m2 | -40~80℃ | |
| 96X96 |  |
QT-9696HW09612P01 | 0.96 | 24 × 25.7 × 1.2 | 17.26 × 17.26 | 12pin | 4-wire SPI | SSD1317 | 150 (Min) cd/m2 | -40~80℃ | |
| 128×64 |  |
QT-2864HW09630P02 | 0.96 | 24.74×16.9×1.45 | 21.74×10.86 | 30 | I2C/ 4-wire SPI | SSD1315 | 150 (Min) cd/m2 | -40~80℃ | |
| 128×64 |  |
QT-2864HW09615P02 | 0.96 | 24.74×16.9×1.45 | 21.74×10.86 | 15 | I2C/ 4-wire SPI | SSD1315 | 150 (Min) cd/m2 | -40~80℃ | |
| 128×64 |  |
QT-2864HW09630P01 | 0.96 | 26.70×19.26×1.45 | 21.744×10.864 | 焊接30 | 8-bit 68XX/80XX Parallel, 4-wire SPI, I2 C | SSD1306 | 150 (Min) cd/m2 | -40~80℃ | |
| 128×64 |  |
QT-2864HW09615P01 | 0.96 | 26.70×19.26×1.45 | 21.744×10.864 | 焊接15 | 4-wire SPI | SSD1306 | 150 (Min) cd/m2 | -40~80℃ |
 |
